Multi Info Display (MID)

  • 4.5" high brightness display
  • Supports NMEA sentence for depth, heading, ROT, RAI, speed, meteo
  • Dual color LED backlight
  • Data and dimmer share up to 10 displays
  • NWZ-4610
  • NWZ-4610

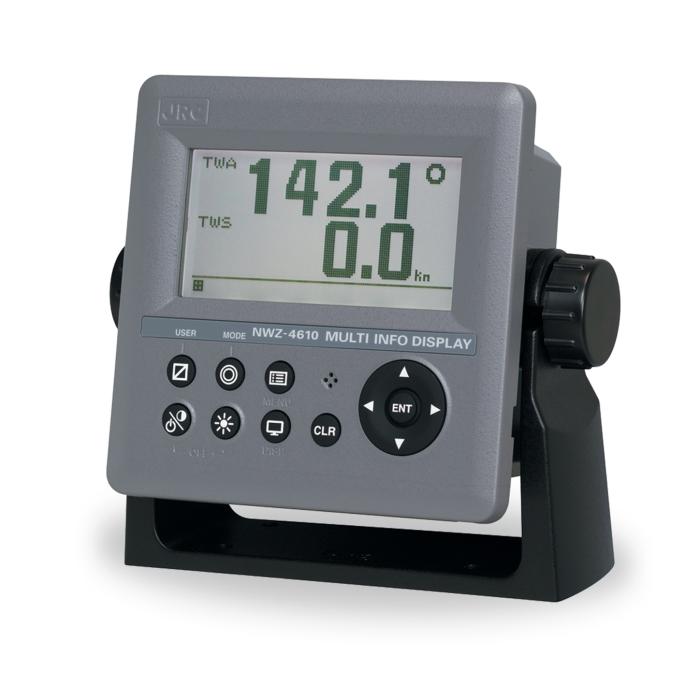

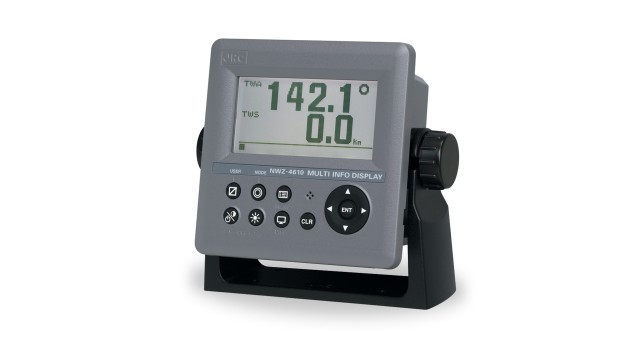

The 4.5-inch intelligent Multi Info Display (MID) features an aesthetic and harmonized design which is a new addition to JRC’s comprehensive product line. This cost-effective concept allows full NMEA0183 data sharing for up to 10 displays. The same applies for dimmer share. By changing the intensity on one of the units, it automatically shares the new settings to the other displays. Also, one of the new features is DC power distribution. When powering one of the displays, this daisy chain concept distributes power to two additional units, which allow for an easy, flexible and economical installation approach.

The JRC MID incorporates many display modes readily available on a highly visible 4.5-inch LCD display. Besides the display being fully dimmable and having backlit keys, it features dual LED backlight (white and orange), making it easy to operate in various light settings on the bridge. Multiple display modes are available from the menu with main data displayed in large characters for easy reading. You can easily switch at your own convenience, particularly useful when a situation requires specific information.
