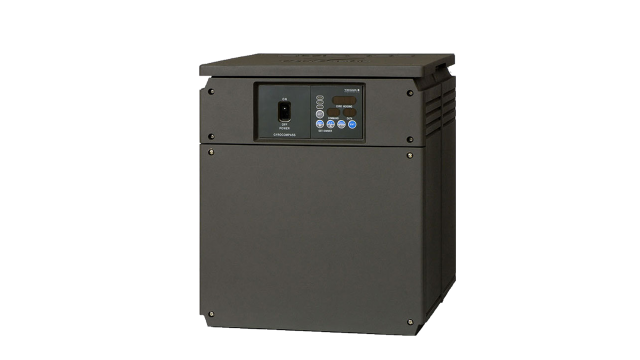

CMZ900 series

CMZ900 series

Gyrocompass

  • Manual speed error correction
  • Serial data output IEC 61162-2 (high-speed transmission)
  • External heading sensor
  • The restart time can be preset from 1 to 99 hours.

A gyrocompass detects the true north by means of a fast-spinning rotor, which is suspended with no friction and is influenced by gravity and rotation of the Earth. A gyrocompass consequently indicates a ship's heading. CMZ900 series has been type approved in accordance with International Maritime Organization (IMO) standards, resolution A.424 (XI) as well as JIS-F9602, class A standards.

A modular design saves the space. Master compass can be integrated in the autopilot steering stand.  A unique anti-vibration mechanism enhanced by the velocity damping effect of high viscous oil, provides superior damping of vibration and decoupling of shock at sea. A small and lightweight container enhances the follow up speed. The gyrocompass reading changes smoothly and does not lag when a small ship rapidly changes course.
