Alphatron Marine is a world-leading supplier of integrated bridge solutions and represents many dominant brands within the maritime industry. In addition, Alphatron Marine is a subsidiary of JRC, one of the most renowned manufacturers in the field of navigation and communication equipment. Together with Alphatron Marine's many years of experience as a branded autonomous system integrator, this is an ideal match within the deepsea market to provide the customer with one total solution.

We have a reputation for listening carefully to your needs and focus on developing reliable, quality products and solutions that exceed your requirements. Our intensive cooperation with specialized shipyards and shipowners forms the basis of our product line created by our Alphatron Marine R&D team. In order to stay up-to-date with the ever-changing maritime developments and regulations, we continuously and extensively invest in both product development and product management. This ensures that your seagoing vessels are prepared for future needs and the safety of your crew and cargo can be guaranteed.

Help?

If you have any questions regarding a deepsea product or service, please contact our deepsea department.

Get serviceGet in touch

Deepsea products

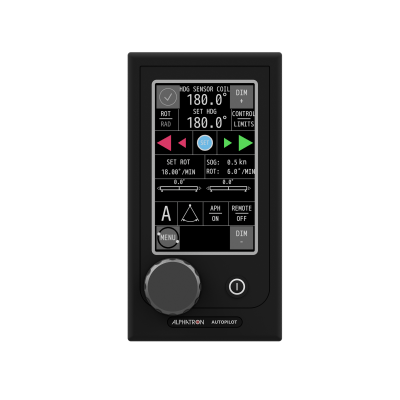

AlphaPilot MFM

The AlphaPilot is a modular, type approved heading control system designed to fit vessels of any size. The advanced track steering technology contributes to safe and efficient operation, defined by its simplicity in usage.

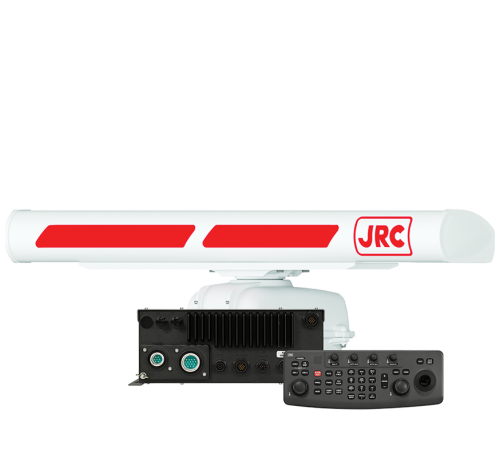

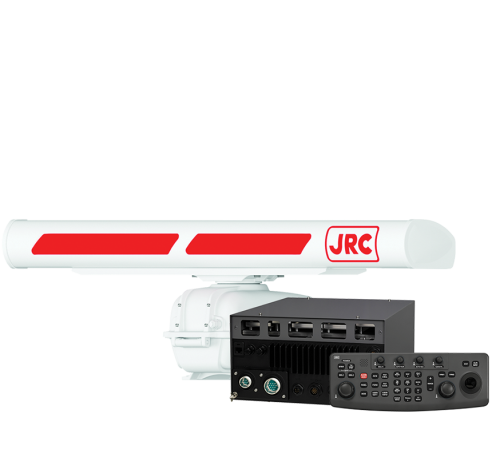

JMA-5300Mk2 COASTAL

The JMA-5300 COASTAL integrates the latest leading technologies with a set of advanced features that allow running radar images faster and efficiently. The radar image is fully processed within a few milliseconds before displayed.

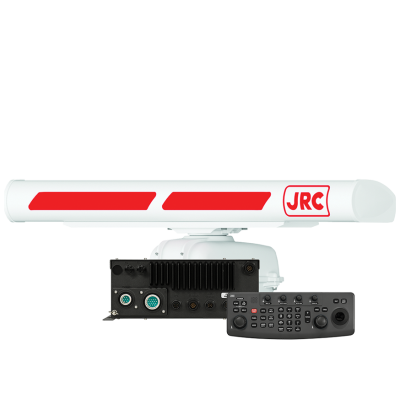

JMA-5200MK2

The JMA-5200 PROLINE continues the success of its predecessor, reaching a high level of performance, designed to seamlessly run radar images faster and more efficiently than ever before.

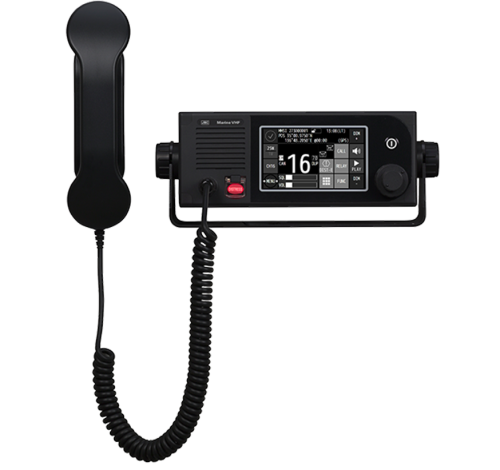

JHS-800S

The all-in-one unit (control unit with speaker, radiotelephone and DSC) has high sensitivity performance, Hi-Fi output and protection rate of IP56. This equipment has standard functions that include regular radiotelephone and DSC.

SOLAS

The Safety Of Lifes At Sea (SOLAS) convention falls under the International Maritime Organization (IMO). SOLAS is regarded as the most important international convention concerning the safety of maritime vessels. The main purpose of the SOLAS Convention is to specify minimum standards for the construction, equipment, and operation of ships in order to guarantee safety on board. Alphatron Marine has extensive knowledge when it comes to international regulations regarding your navigation equipment. Do you have questions? Please feel free to contact the nearest Alphatron Marine office, or use our SOLAS configurator to see which navigation equipment is required on board as a minimum.

Global Maritime Distress and Safety System (GMDSS)

The Global Maritime Distress and Safety System (GMDSS) is a worldwide emergency and safety system for shipping at sea. According to the GMDSS, a ship that complies with these requirements must be able to contact a shore station, receive weather reports and maintain ship-to-ship communications, at any time and from any location. GMDSS is currently mandatory for commercial shipping, but for safety reasons, it is also strongly recommended for pleasure craft.

GMDSS requirements depend on the sailing area of ​​your ship. If you sail up to 20 to 30 miles from the coast, we call this the A1 area, and a standard VHF is sufficient (JHS-800S). This allows you to reach the Coast Guard, make and maintain contact with other ships and receive the weather forecast. Outside the A1 area, up to +/- 200 to 300 miles from the coast, is the A2 area. The A3 area is the zone outside A1 and A2 but within range of an Inmarsat satellite. This can actually be received anywhere in the world except for the areas near the northern and southern poles. A4 are the remaining areas around the pool area. Now that it is clear what the different sailing areas are, we have made a diagram below with the required equipment per sailing area. Of course, you can always contact us for personalized advice, we are happy to help you.

GMDSS requirements
Model
A1
A2
A3 Inmarsat
A3 MF/HF
A4
VHF radio equipment*
JHS-800S
X (2 sets)
X (2 sets)
X (2 sets)
X (2 sets)
X (2 sets)
MF/HF radio equipment*
JSS-2150
X (2 sets)
X (1 set)
X (1 set)
X (1 set)
Inmarsat C
JUE-87
X (2 sets)
X (1 set)
X (1 set)
NBDP (telex)
7ZZJD0089
X (1 set)
X (2 sets)

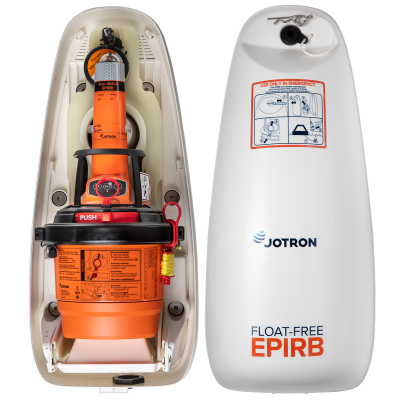

EPIRB
TBA
X (1 set)
X (1 set)
X (1 set)
X (1 set)
X (1 set)
SART**
TBA
X (1 or 2 sets)
X (1 or 2 sets)
X (1 or 2 sets)
X (1 or 2 sets)
X (1 or 2 sets)
Navtex
NCR-333
X (1 set)
X (1 set)
X (1 set)
X (1 set)
X (1 set)
VHF Handheld (two-way)**
JHS-207
X (2 or 3 sets)
X (2 or 3 sets)
X (2 or 3 sets)
X (2 or 3 sets)
X (2 or 3 sets)

* Includes DSC and watchkeeping receiver

** >300 GT requires 1 set, >500 GT requires 2 sets

*** >300 GT requires 2 set, >500 GT requires 3 sets

Deepsea service

Our shipping department understands that a minimum delay during your journey is of great importance. We are happy to help you make your operation a success throughout the entire life cycle of our products. With our worldwide network, we offer unparalleled service support 24/7, a stock of spare parts that are immediately available to you, personalized maintenance contracts, and fast turnaround times for our own equipment and that of leading manufacturers. We are your global partner for onboard and onshore service. Read more about our services.

Special projects

On the one hand, there is an increasing demand for standardization, on the other, there are projects that are anything but standard. Alphatron Marine has a standard portfolio, this portfolio consists of so-called COTS products (Commercial Of The Shelf) and these are the same for every customer. However, sometimes we also get requests for MOTS products, Modified / Military Of The Shelf products. These projects require product customization, such as command and control software or products for a specific type of customer, such as naval or coastguard projects. These kinds of products and projects require a completely different kind of project management.

To ensure we can handle these more complex projects, we leverage stronger partnerships with other suppliers, such as Terma A/S. With partnerships like this, we can provide more effective and affordable solutions that fit your vessel.

These special projects require a different approach. That is why our global engineering and project management team and our people responsible for sales, installation, and preparation are assisted by the head office in Rotterdam. Projects that are classified as 'special projects' require a more detailed and precise approach in the implementation phase. This can be due to: (inter)national laws and regulations and any restrictions imposed, foreign policy, taking into account the commercial interests of suppliers, having contracts with a neighboring country, and timelines of these projects. As a supplier, you have been involved in the project from the tender, because the equipment and software are just as important as the ship itself. It is the system that makes the ship operational. There are often 100 to 200 specific requirements that the equipment must meet, and ultimately you will have to deal with stricter qualifications and inspections. Do you have a special request? Contact us, and we will be happy to assist you.
