JLN-740/JLN-741

JLN-740/JLN-741

Doppler log

  • Highly accurate speed and distance log
  • Proprietary bubble detection
  • Precise navigation during berthing
  • BAM compliant alert handling

The JLN-740 series is a single axis water SDME compliant with the IMO MSC.96 (72) standard, required on all internationally voyaging ships exceeding 300 GT. Boasting never-before-seen accuracy for speed measurement, the JLN-740 is also installed with our company’s proprietary bubble detection function, which informs you when measurement accuracy is impaired due to air bubble contact.

The JLN-740 series utilizes digital signal processing, which, coupled with optimizations to existing speed measurement waveforms and the reliability of ship bottom mounting, has resulted in water speed measurement with accuracy up to 0.03kn or 0.3% in all models (measured at fixed speeds) That accuracy of information allows for highly fuel-efficient speeds, which means faster voyages with less waste. Along with improved speed measurements, the series also has greatly improved ship speed tracking, relaying all the information you need for precise navigation during berthing.

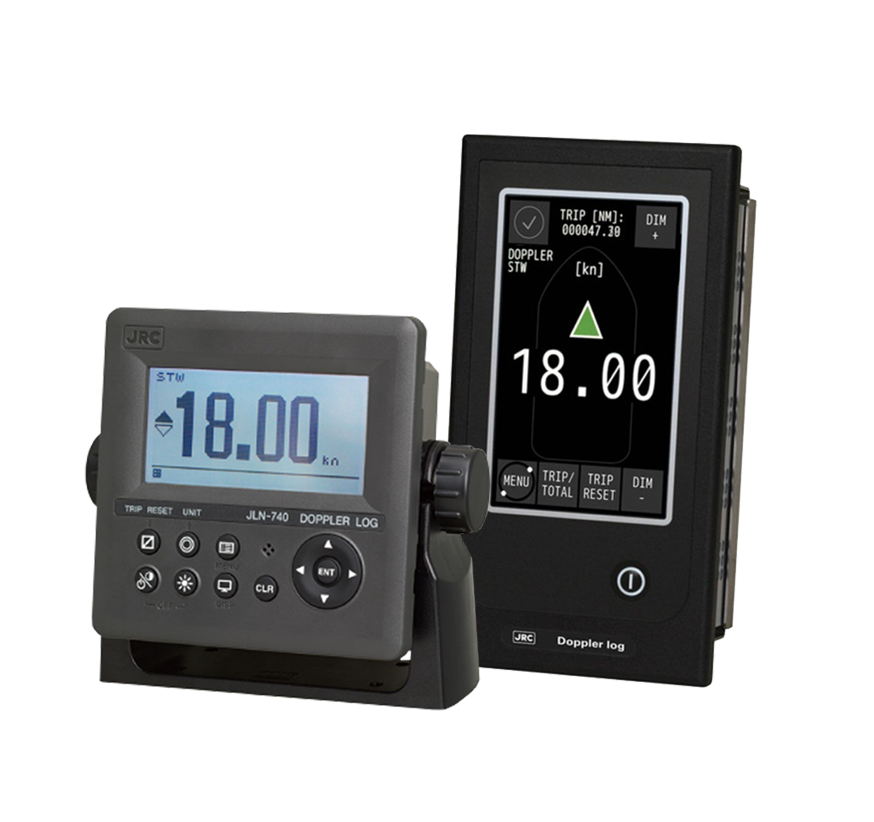

Touch operation
With just one physical power button, the 5-inch color main display and 6.5 and 8.4-inch for the remote displays are operated by touch operation. The touch screens can be easily read during daylight but also in darkness, with excellent clarity, even when viewed from a wide angle. All displays feature dimmable backlighting and have a graphical user interface is logical, easy to use and consistent throughout. All displays are designed for the industrial environment found onboard of ships, ensuring years of problem free operation.
