De Internationale Maritieme Organisatie (IMO) heeft verplichte wijzigingen in SOLAS-hoofdstuk V aangenomen om de melding van verlies van vrachtcontainers op zee te standaardiseren.

JRC has developed a smart system that advises the crew on course and speed in certain sea conditions, thereby limiting the ship's rolling and preventing the loss of containers. The Anti-Parametric Rolling System (APRS) can detect waves, distance, direction and swell using the wave analysis function in the JMR-9200/7200 and 5400 series radars. This alerts the crew long before the ship starts to roll parametrically, allowing them to take action before it is too late.

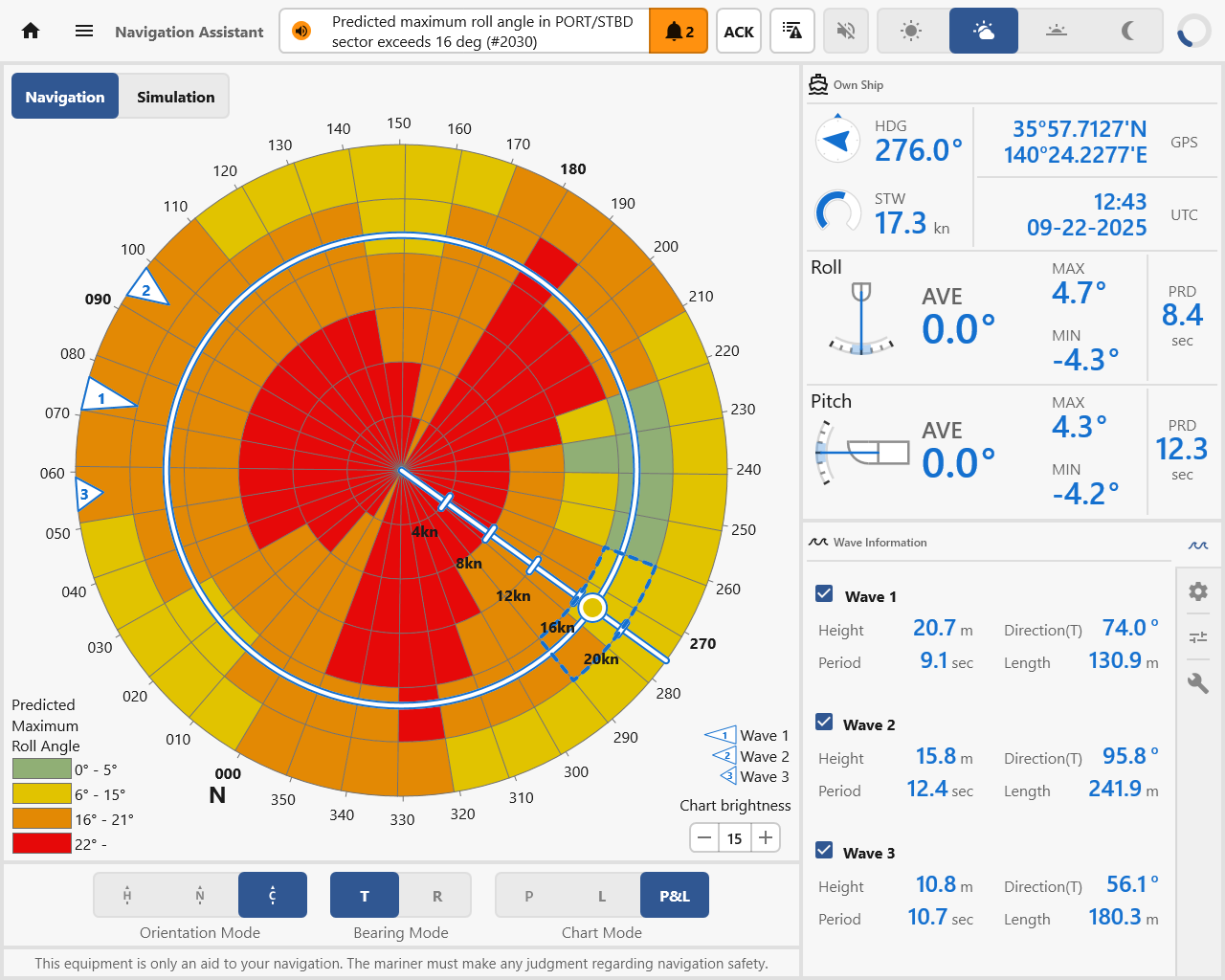

The smart algorithm displays all important and measured values in a clear layout. In addition, vectors are
used to display the speed and direction of the approaching waves and the current course and speed of the ship in a polar diagram. This graphical representation gives the crew a good insight into the situation and allows them to see whether the current
course can be maintained or whether it needs to be changed to prevent parametric rolling and loss of cargo.

From Detection to Prevention: How It Works

1. Wave analysis

By applying advanced radar technology of the JMR-9200/7200 and 5400 series radars and using the wave analysis function, the system analyses each detected wave in detail, including its direction, distance, height, period and length.
This continuous analysis provides the crew with reliable, real-time insights into sea conditions, enabling timely action to be taken to maintain safety and stability.

2. APRS displays dangerous course and speed

Using a motion sensor and our special algorithm, APRS continuously monitors the ship's movements. The system automatically extracts the ship's roll and pitch angles and calculates the corresponding periods.
This real-time analysis enables APRS to recognize potentially dangerous combinations of course and speed, alerting the crew in good time and giving them the opportunity to take corrective action before the situation becomes critical.

3. Hazard warnings with APRS

When hazardous conditions are detected, APRS automatically activates a warning. The system calculates by using our proprietary algorithms, the dangerous combinations of course and speed at which parametric roll motions can occur and clearly displays this information on a polar chart.
This gives the crew immediate insight into the situation and useful guidelines for avoiding risks.

4. Prevention: Avoiding a Rolling Vessel

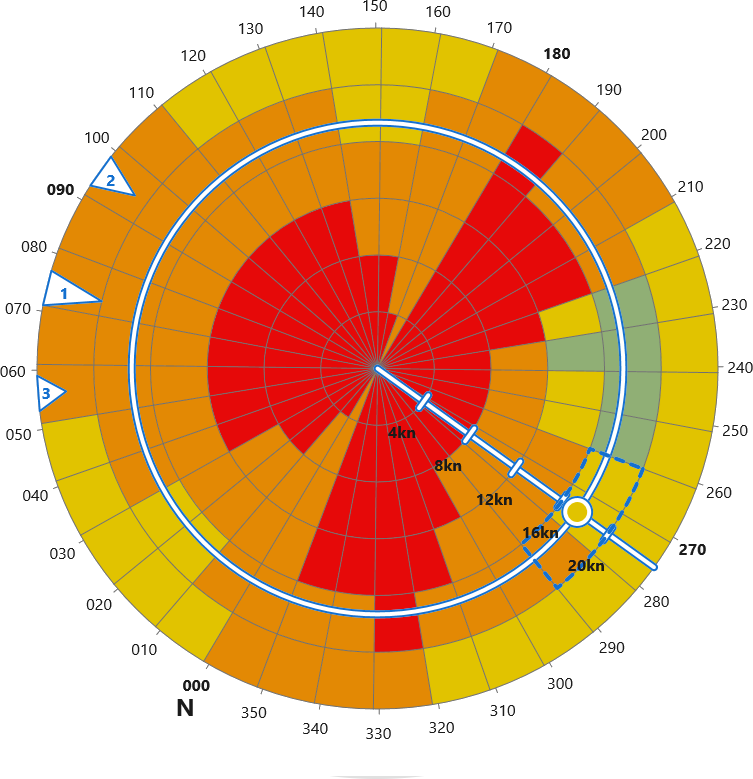

When APRS issues a warning signal, the crew can quickly assess the situation using the polar diagram. The vessel’s heading and speed are plotted alongside the three largest detected waves, ranked by their energy and displayed with their respective directions.

Clear color coding provides instant insight:

• Green indicates a safe course
• Red highlights dangerous directions requiring avoidance

By hovering over a colored sector, APRS displays the predicted maximum roll angle of the vessel in degrees. Armed with this information, the crew can adjust the heading or speed to avoid parametric rolling and preventing potential container loss and the operational disruptions that come with it.

Vaar mee op de juiste golflengte, kies voor JRC!
